PM VSD Two Stages Screw Compressor

/160kw  New Two-Stage Permanent Magnet Screw Air Compressor

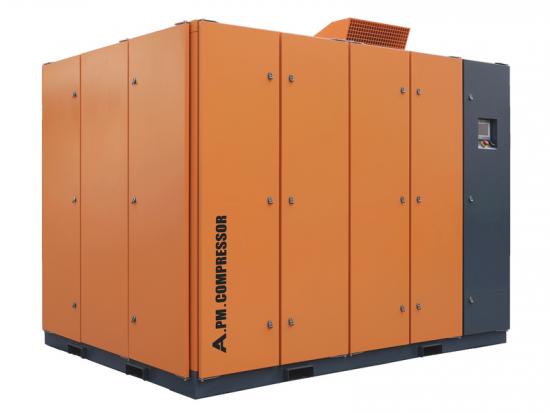

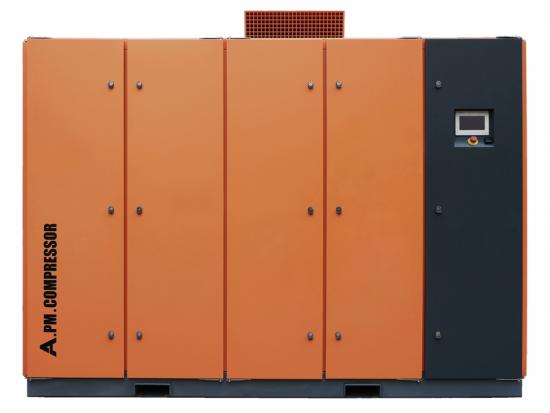

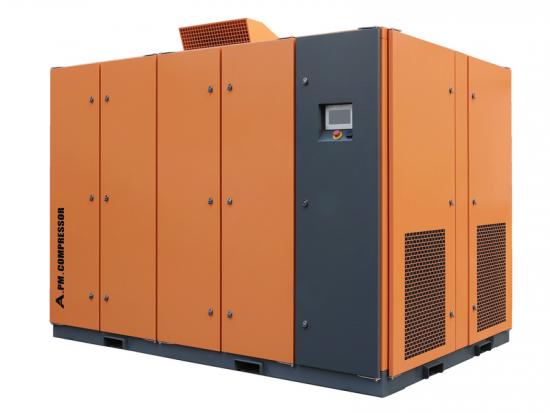

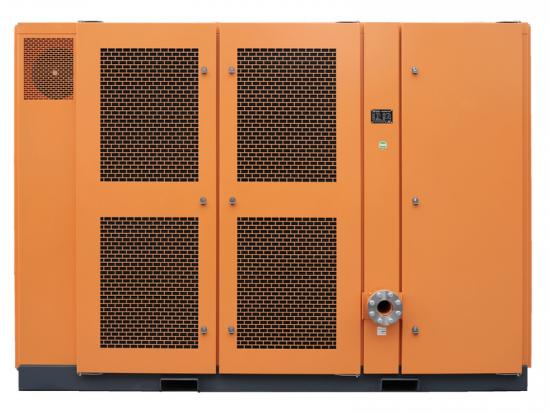

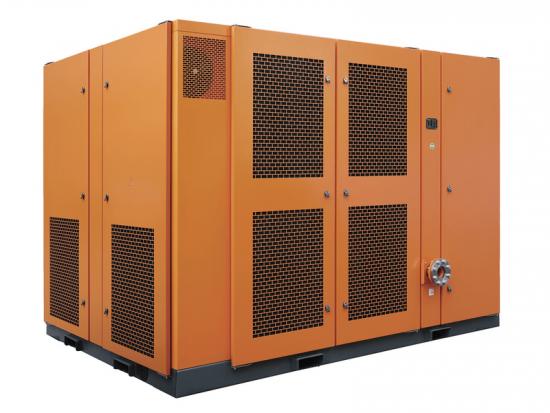

160kw  New Two-Stage Permanent Magnet Screw Air Compressor

The two-stage compression energy-saving oil-injected screw compressor has a unique host design. It not only has all the advantages of a single-stage oil-injected screw air compressor, but also has a more reliable and energy-saving operation due to the low compression ratio of each stage, small force on the rotor and bearings, large rotor diameter and low speed.
  • Item NO.:

    LGGPM-200
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-15 days
Share To :
  • Product Details

160kw  New Two-Stage Permanent Magnet Screw Air Compressor

The two-stage compression energy-saving oil-injected screw compressor has a unique host design. It not only has all the advantages of a single-stage oil-injected screw air compressor, but also has a more reliable and energy-saving operation due to the low compression ratio of each stage, small force on the rotor and bearings, large rotor diameter and low speed.

1.High efficiency and energy saving, scientific structure:The entire series has super first-class energy efficiency, low power and large volume.

2.Quality upgrade, environmental protection and quietness:Small vibration, low noise and low energy consumption.

3.German technology, dual-stage host:German imported technology, large rotor, low speed, ensure high performance of the machine.

4.Stable gas supply and reliable operation:Increase the oil-gas separation equipment to ensure the cleanliness of the gas source, the oil content at the outlet is ≤2ppm, and the quality of the finished product is improved.

5.Simple operation and flexible maintenance:The folded oil separator core has a 3 times larger filter area than ordinary winding core, with high load, low pressure difference and long service life.

6.Microcomputer touch control system:Intelligent control system, automatically adjusts exhaust volume according to working conditions.

7.Novel and fashionable industrial style design:Rust-proof housing, solid material structure.

8.IoT Internet of Things:The Internet of Things module allows users to monitor the operation status of the air compressor through mobile terminals anytime and anywhere.


Model

LGGPM-200

Discharge Pressure(Mpa)

0.8

Air Delivery(m³/min)

33.6

Power(kW)

160

Lubricant(L)

90 Driving Way

Direct  Drive

Cooling

Air Cooling

Discharge Temperature(℃)

Ambient temperature ±15℃

Electricity(V/Hz)

380V/50Hz

Weight(kg)

3570

Dimension(mm)

2500*2126*2130

Air Outlet Pipe Diameter(inch/mm)

DN80

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized  in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality  testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.


2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
