Pandora series screw air compressor is Huada's innovative product, which has the characteristics of low noise,energy conservation and high efficiency.
Item NO.:
HD-37+Product Origin:
ChinaProduct weight:
1120kgShipping Port:
XiamenLead Time:
7-15 days

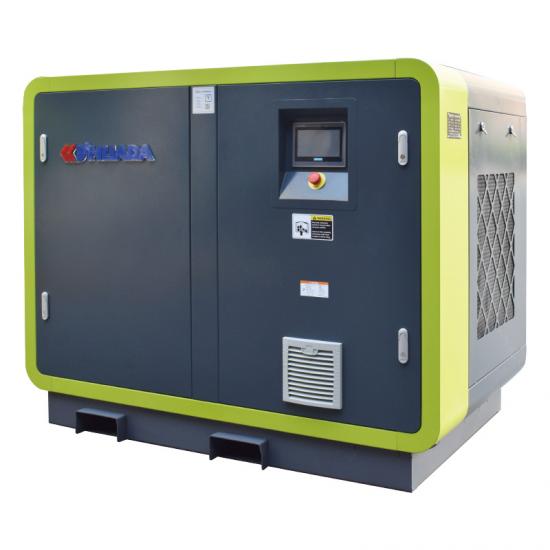

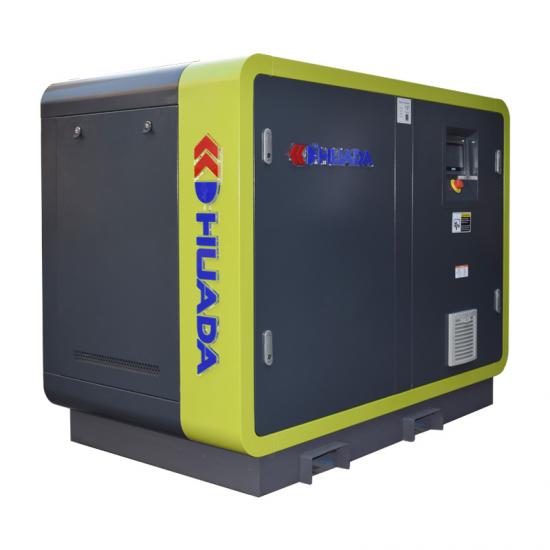

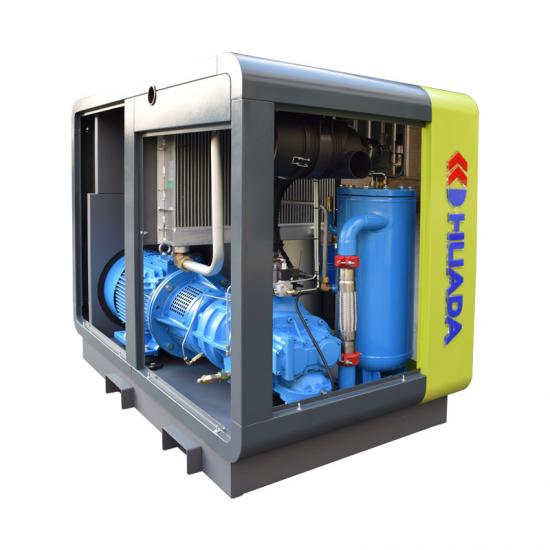

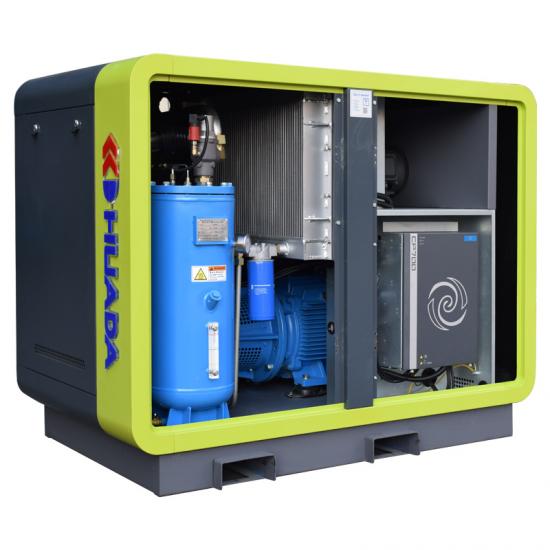

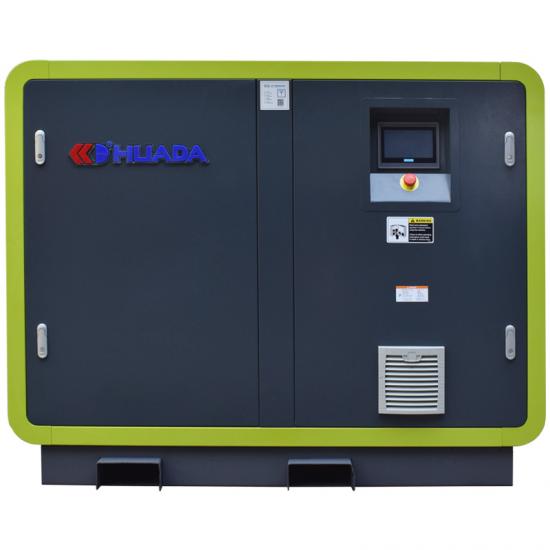

Professional Factory Best Price 37kw Pandora Series Screw Air Compressor
Pandora series screw air compressor is Huada's innovative product, which has the characteristics of low noise,energy conservation and high efficiency.
1.Colorful touch screen
Display working condition of each spare parts by intelligent dynamic control,directly monitor movement of pressure,temperature,current etcwith a 8M RAM.
2.Efficient energy conservation
World leading air capacity and energy-efficiency.
3.Front filter mesh
Though a easy equipment,it offers better protection to air end and makes the machine serve longer time.
4.Ultra low noise
With precise inlet pipe design,silencer and spare parts install control,operation noise maintain at low level.Even machine can be installed in working place.
5.Efficient transmission
More compact direct drive:less easy-damaged spare parts,no transmission equipment,reach 100% transmission efficiency.
6.Efficient permanent magnet motor
Permanent magnet motor efficiency is 9% higher than standard asynchronous motor.Even at low rotate speed,efficiency remain unchanged,differed with asynchronous decreasing efficiency at low speed.Therefore,power is spared.
Model |
HD-37+ |
Discharge Pressure(Mpa) |
0.7~1.0 |
Air Delivery(m³/min) |
1.85~7.4 |
Power(kW) |
37 |
Cooling |
Air |
Discharge Temperature(℃) |
<Ambient temperature±15℃ |
Specific Power[kW/(m³/min)] | 6.7 | Noise(dB(A)) | 62±3 |
Transmission mode | Direct drive | Start Mode | Permanence |
Electricity(V/Hz) |
380V/50Hz |
Dimension(mm) |
1700*1100*1604 |
Weight(kg) |
1120 |
Air Outlet Pipe Diameter(inch/mm) |
G1-1/2'' |
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

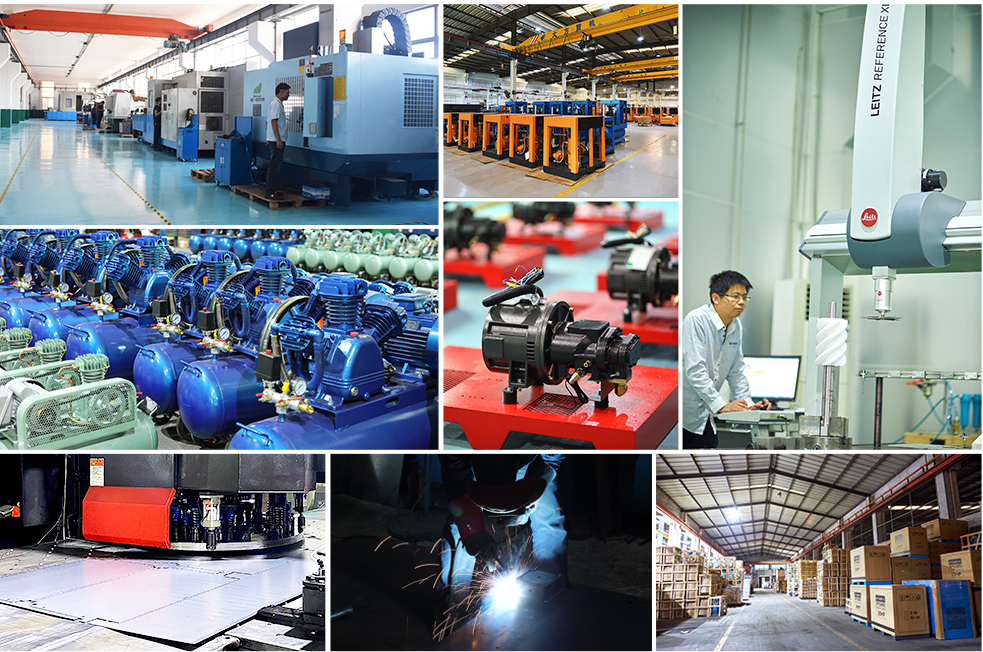

2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
